Contract work for industry.
Contract machining.
Schaffran propeller.
Our experience for your product.

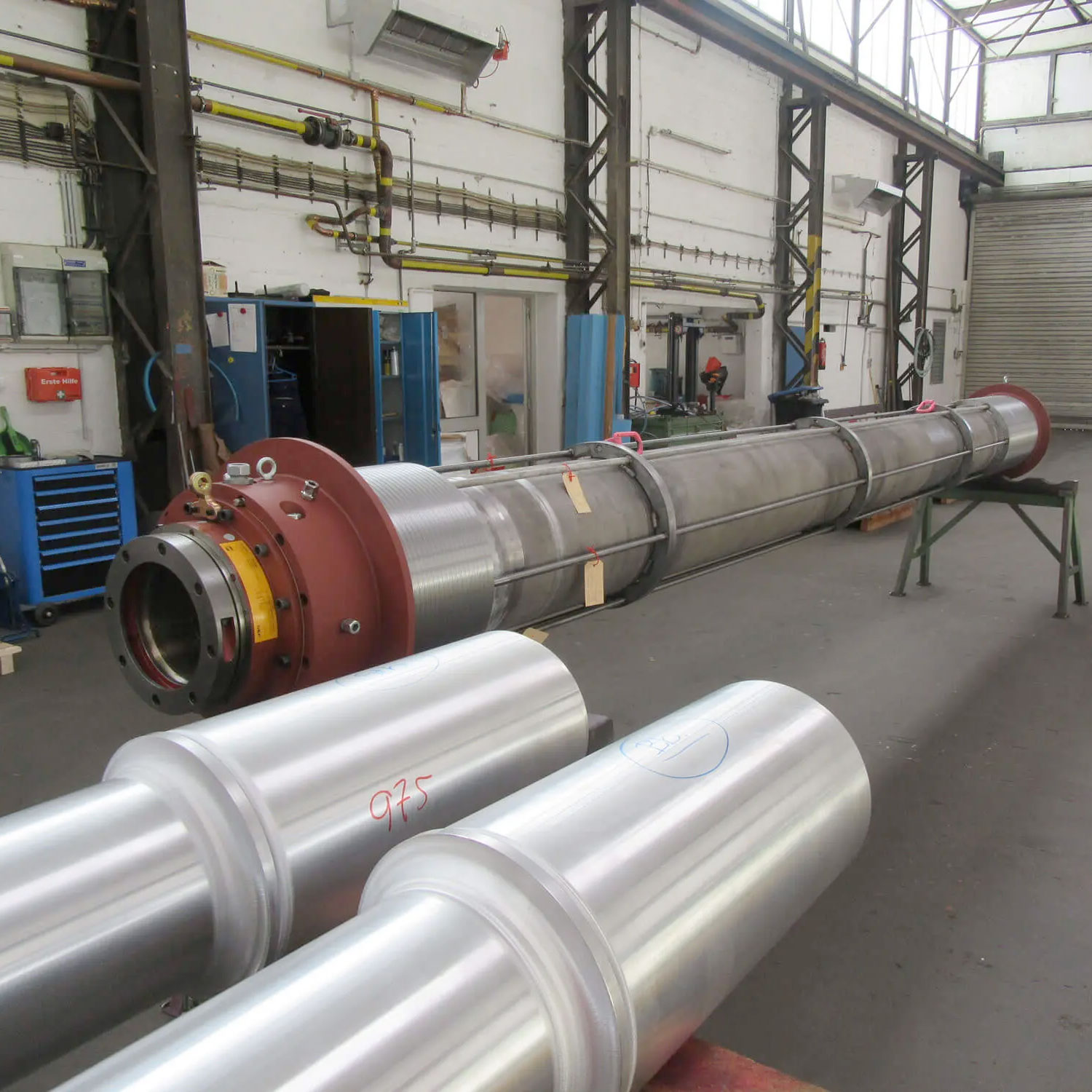

With our long lathes, drilling and milling machines as well as our experienced specialists, we are also able to carry out contract work for the production of various industrial parts for you. In addition to the production of complete shaft systems with fixed-pitch or variable-pitch propellers, we can also machine all turned parts for you up to a length of 16 m:
- Propeller shafts, tail shafts
- Agitator shafts
- Intermediate shafts
- Die cast columns
- Rudder shafts
- Pipes
- Flanges for couplings and pipes
- Bushings, bearings
Feel free to get in touch. We will be happy to check whether we can prepare you a quote for the machining of your products.
Machine equipment
| Quantity | Type | Length | Maximum diameter | Permissible weight |
| 1 | Lathe | 16,000 mm | Ø above support: Ø 360 mm | with 3-4 bezels: 7,000 kg |
| 2 | Lathe | 14,000 mm | Ø above bed: Ø 800 mm Ø above support: Ø 530 mm |
Peak voltage: 6,000 kg with 2 bezels: 9,000 kg |
| 1 | Lathe | 10,000 mm | Ø above support: Ø 540 mm | with 3 bezels: 9,000 kg |
| 1 | Lathe | 6,000 mm | Ø above bed: Ø 800 mm Ø above support: Ø 480 mm |
6,000 kg |
| 1 | Lathe | 3,000 mm | Ø above bed: Ø 660 mm Ø above support: Ø 420 mm |
|
| 1 | Weiler E50 | 1,000 mm (length) | Ø 500 mm | |
| 1 | Weiler E110 | 2,000 mm (length) | Ø 1.100 mm | |
| various | Small lathe | |||
| various | Milling machine | |||
| 2 | Drilling machine | X=1800, Y=1250, Z=1250 Spindle Ø 105 mm |
2,000 – 4,000 kg | |
| 1 | Straightening bench 100 t | |||
| 1 | Keyseating machine | |||
| 2 | Hangar crane | 10 t | ||
| 1 | Hangar crane | 20 t | ||
| various | Slewing crane | 0.5 to 1 t |
